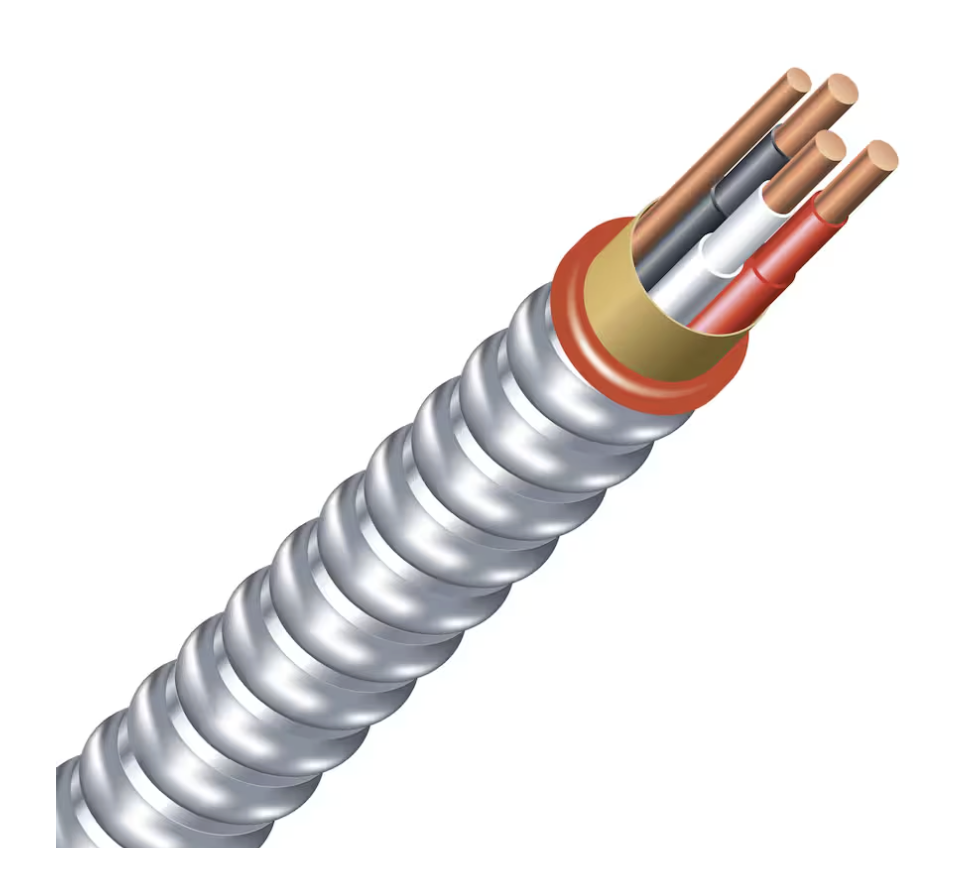

Southwire AC90 10/3 30M Armoured Cable

The Southwire AC90 10/3 Armoured Cable is designed for safe and durable electrical wiring in dry locations. With three 10 AWG copper conductors plus a ground wire, this cable is ideal for open or concealed wiring, cable troughs, and ventilated flexible cableways.

Built with PVC/nylon insulated copper conductors and a bare copper ground, the cable is protected with bare interlocked aluminum armour for added strength and mechanical protection. This rugged design makes it a trusted choice for residential, commercial, and light industrial applications.

Key Features

• Cable Type: AC90, 10/3 with ground

• Length: 30m

• Conductor: Copper with PVC/nylon insulation

• Armour: Bare interlocked aluminum armour

• CSA-approved for dry locations only

• Provides superior mechanical protection

Specifications

• Conductor Size: 10 AWG

• Ground: Bare copper wire

• Voltage Rating: 600V

• Max Operating Temperature: 90°C

• Minimum Install Temp: -10°C (CSA cold rating: -25°C)

• Standards: CSA Certified
