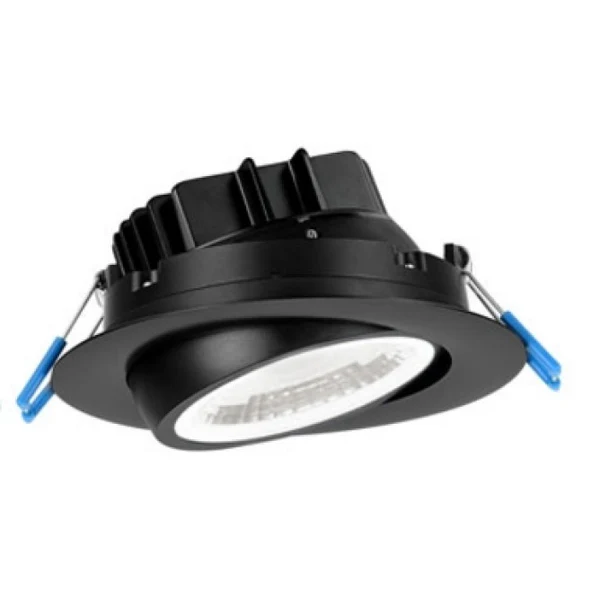

Lotus 3” LED Gimbal Potlight, 7.5W (Black)

The Lotus 3” Round LED Gimbal combines sleek design with flexibility and performance. With its patented housing-free, airtight design, it installs easily in tight ceiling spaces, making it an ideal solution for residential and commercial lighting.

Key Features

• Wattage: 7.5W (50W halogen equivalent)

• Lumen Output: 580 LM

• Color Temperature: 2700K (other CCT options: 3000K / 3500K / 4100K / 5000K / DTW 32)

• Beam Angle: 38° with 20° tilt and 360° rotation

• CRI: 90+ for accurate color rendering

• Driver: Integral driver inside connection box (no external junction box needed)

• Input Voltage: 120V AC Triac dimmable (optional 277–347V AC 0–10V dimmable)

• Power Factor: 0.95

• Depth: 1 3/4" – ideal for limited ceiling clearance

• Installation Clearance: 2.5" for Romex, 3.5" for MC or BX

Construction

• Die-cast aluminum body for durability and heat dissipation

• Airtight design, no housing required

• Snap-in spring clip installation for quick setup

Certifications & Ratings

• IC rated – safe for direct insulation contact

• Wet & damp location approved

• IP54 rated

• cULus listed

• Energy Star certified (except DTW models)

• T24 compliant

Lifespan & Warranty

• 50,000 hours (70% light output)

• Residential Warranty: 10 years

• Commercial Warranty: 5 years
