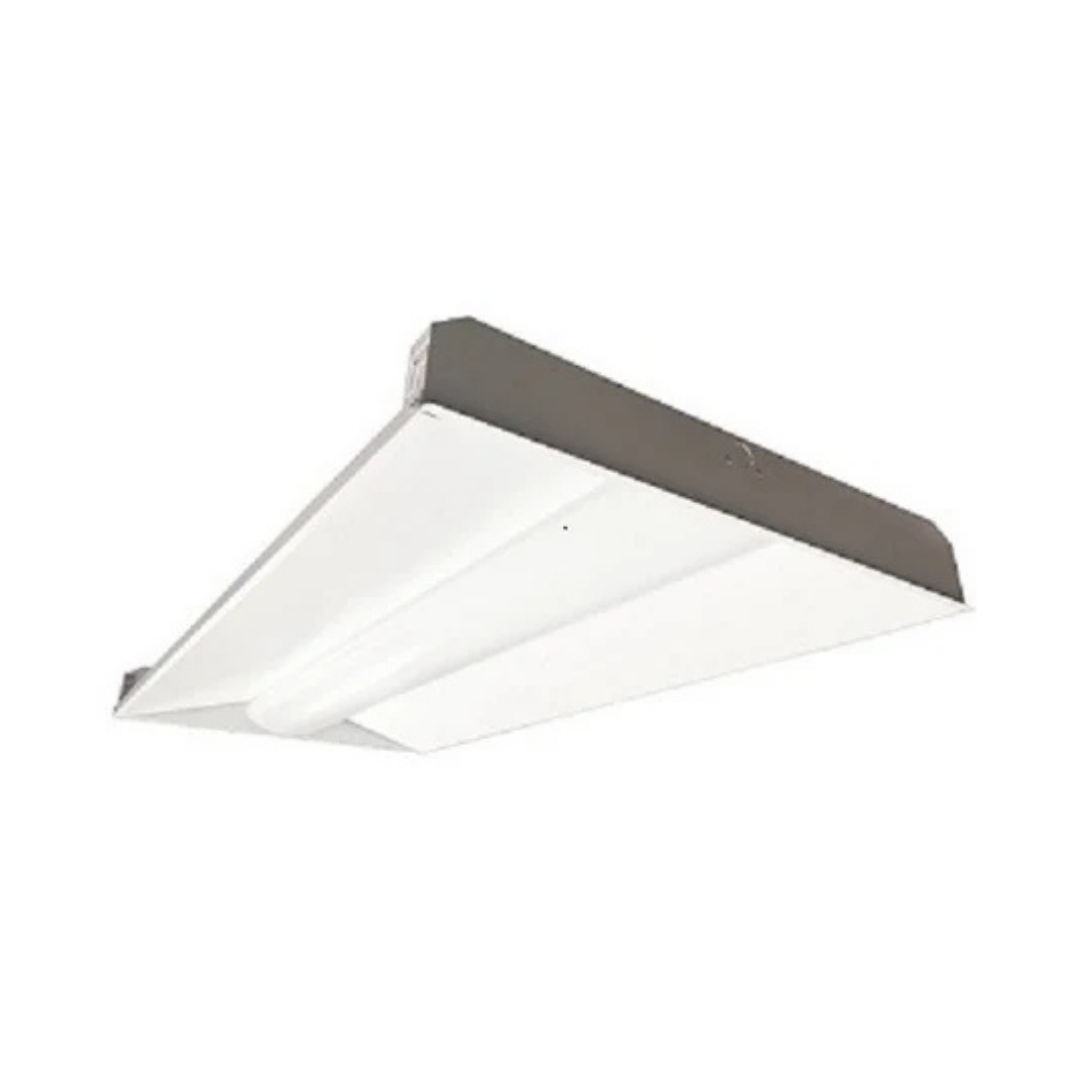

LED Central Basket Troffer 2×4, 34W (AC120–277V)

The LED Central Basket Troffer 2×4 delivers high-performance, energy-efficient lighting for offices, schools, healthcare facilities, and other commercial environments. With its shallow low-profile design, frosted lens, and premium components, it provides soft, uniform illumination while reducing energy costs by up to 80% compared to fluorescent troffers.

Key Features

• Wattage: 34W

• Lumen Output: 4,284 LM

• Efficacy: >126 lm/W

• Color Temperature: 4000K (3500K & 5000K available by order)

• CRI: >80

• LED Type: Seoul 5630 Gen 4 chip

• Driver: Espen Class-2 constant current, UL/cUL listed

• Dimming: 0–10V continuous dimming (optional 4-level occupancy sensor: 70%–60%–50%–20%)

• Voltage: 120–277V (347V available with step-down transformer)

• Power Factor: >0.90

• THD: <20%

• Frequency: 50/60Hz

• Mounting: Recessed T-Grid (surface mount kit optional)

• Dimensions: 23.8” × 47.8” × 2.8”

Construction

• Die-formed 24-gauge cold-rolled steel body

• Matte white, baked acrylic paint finish

• High-reflectance white interior

• Frosted diffuser for soft, even illumination

• Low-profile, shallow design for easy installation

Certifications & Performance

• DLC Premium listed

• UL/cUL listed driver

• Rated lifespan: 100,000 hours (L70 TM-21 @ 70°C)

Warranty

• 10-year manufacturer warranty
