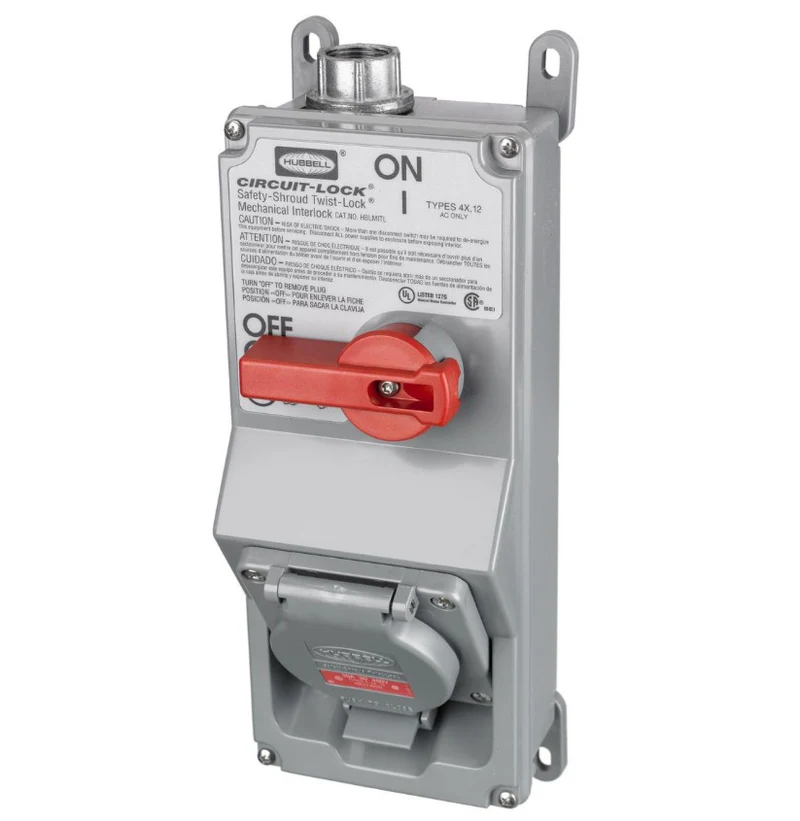

Hubbell HBLMITL Twist-Lock® Mechanical Interlocked Switched Enclosure, 30A

The Hubbell HBLMITL Twist-Lock® Mechanical Interlocked Switched Enclosure is engineered for reliable power safety in demanding environments. Designed to work with 20A or 30A watertight safety shroud receptacles, this unit virtually eliminates the risk of circuit making or breaking under load. Its compact, corrosion-resistant non-metallic NEMA 4X enclosure ensures durability and long-term performance in extra heavy-duty industrial applications.

Key Features

• Rating: 30A, 600 VAC, 60 Hz, 18 kW

• Type: Unfused mechanical interlock with switched enclosure

• Contact Form: 1 NO, 1 NC

• Configuration: 3-pole, lever actuator

• Enclosure: Compact, corrosion-resistant non-metallic (NEMA 4X)

• Material: Molded Valox for enhanced safety, impact, and corrosion resistance

• Style: Standard industrial design

• Safety: Prevents circuit making/breaking while under load

Specifications

• Brand: Hubbell Wiring Device-Kellems

• Sub Brand: Twist-Lock®

• Amperage: 30A

• Voltage: 600 VAC

• Frequency: 60 Hz

• Enclosure Color: Gray

• Standards: UL 746C Listed

• Application: Extra heavy-duty industrial applications

• UPC: 78358517680
