Hubbell HBLAC2 Industrial Grade Motor Disconnect Switch, 30A
Unfused | 3 Pole | NEMA 4X Non-Metallic Sloped Enclosure
CA$535.00CA$524.95

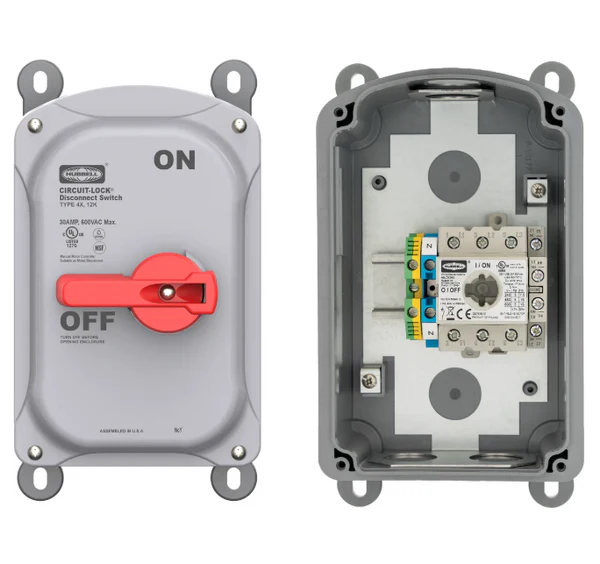

The Hubbell HBLAC2 Motor Disconnect Switch is a rugged, unfused 3-pole unit rated at 30A and 600V AC. Designed for heavy-duty industrial and washdown environments, it meets NEC section 430.102(B) requirements for motor disconnects, ensuring safe and compliant installations. The non-metallic sloped enclosure prevents dirt buildup, while IP69k and NEMA 4X/12 ratings deliver superior resistance to water and corrosion.
Key Features
Rating: 30A, 600V AC, 3 Pole
Type: Unfused motor disconnect switch with auxiliary contact
Enclosure: Non-metallic sloped top, UV-stabilized, corrosion and impact-resistant
Protection: IP69k and NEMA Type 4X/12, certified by NSF for hygienic applications
Handle: Highly visible red handle, lockable in OFF position (OSHA Lockout/Tagout compliant)
Markings: Permanent laser-etched ratings won’t wash off
Auxiliary Contact: Factory-installed HBLAC2 “Break Before Main Break” 1 set of N/O contacts, designed for VFD applications
Specifications
Catalog Number: HBLDS30VFD
Horsepower (max): 15 HP
Color: Gray
Terminals: Screw type
Environmental Conditions: Indoor/outdoor, heavy-duty washdown
Standards: UL listed as manual motor controller and suitable as motor disconnect
Ingress Protection: IP69k, NEMA 4X, 12
